高功率在线式保偏隔离器1064nm 1-50W |
|
|
|
|
|
|
|
| 1064nm大功率保偏隔离器，是允许光向一个方向通过而阻止向相反方向通过的无源器件，作用是对光的方向进行限制，使光只能单方向传输，通过光纤回波反射的光能够被光隔离器很好的隔离，提高光波传输效率.它采用了熊猫型偏振保持光纤来保持高消光比的输入光偏振。该器件通光被使用在光纤放大器系统中，特别是泵浦激光器后端来保护激光器。飞博特还能提供850nm、980、1030、1040、1053、1064nm等波长。功率1~50W可定制。 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
产品特点 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
♦ 低插入损耗 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
♦ 高隔离度和一致性 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
♦ 承受高功率 |
|
|
|
|
|
|
|
|
|
♦ 高消光比 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
应用 |
|
|
|
|
|
|
|
|
|
|
|
♦光纤放大器 |
|
|
|
|
|
|
|
|
♦光纤激光器 |
|
|
|
|
|
|
|
|
♦实验室研究 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 产品规格 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 指标名称 |
|
|
|
单位 |
标准值 |
极限值 |
|
|
| 中心波长 |
|
|
|
nm |
1064 or customized |
|
|
|
|
|
|
| 带宽范围 |
|
|
|
nm |
±10 |
|
|
|
|
|
|
| 峰值隔离度(Type) |
dB |
35 |
|
|
|
|
| 隔离度（@23℃） |
dB |
25 |
Min. |
|
|
|
| 通光功率(CW) |
|
W |
1.3.5.10.20 |
|
30.5 |
|
|
|
|
|
|
| 插入损耗（Type） |
dB |
0.6 |
|
0.8 |
|
|
|
|
|
|
| 插入损耗 |
|
|
|
dB |
1.0 |
|
1.2 |
Max. |
|
|
|
| 消光比（快轴截止） |
dB |
22 |
Min. |
|
|
|
| 消光比（双轴工作） |
dB |
20 |
Min. |
|
|
|
| 回波损耗 |
|
|
|
dB |
50 |
Min. |
|
|
|
| 拉伸载荷 |
|
|
|
N |
5 |
Max. |
|
|
|
| 光纤类型 |
|
|
|
|
PM 980 Panda Fiber or PM LMA Fiber |
|
|
|
|
|
|
| 操作温度 |
|
|
|
℃ |
-5 to +50 |
|
|
|
|
|
|
| 储藏温度 |
|
|
|
℃ |
-50 to +85 |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 备注 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| * 测试数据是不包含接头值。 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| * 随着技术的持续改进，产品的封装结构会有略微调整，如介意请下单请与我们仔细确认。 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| * 脉冲功率条件，请与我们联系细节 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

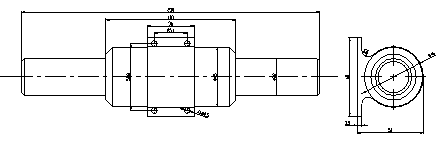

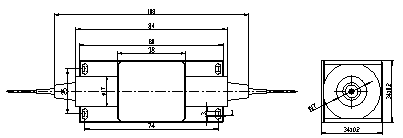

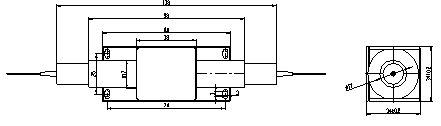

| 订购信息 |
|
|
|
|
| HPMI-AAAA-BB-C-DD-EE-F-GG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 波长 AAAA |
|
光纤类型 BB |
|
|
|
尾纤套管类型 C |
|
长度 DD |
|
接头 EE |
|
工作方式 F |
|
|
功率 GG |
|
|
|
|
| 1053 - 1053nm |
|
P9 - PM 980 Fiber |
|
|
B - 250um Bare Fiber |
05 - 0.5m |
|
NE - None |
|
F - Fast Axis |
|
|
01 - 1W |
|
|
|
|
| 1064 - 1064nm |
|
LM - PM LMA Fiber |
|
|
L - 900um Loose Tube |
08 - 0.8m |
|
|
|
|
|
|
Blocked |
|
|
03 - 3W |
|
|
|
|
| SSSS - Specify |
|
SS - Specify |
|
|
|
|
|
|
|
|
|
|
10 - 1.0m |
|
|
|
|
|
B - Both Axis |
|
|
05 - 5W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15 - 1.5m |
|
Operating |
|
|
10 - 10W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SS - Specify |
|
|
|
|
|
|
|
30 - 30W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50 - 50W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SS - Specify |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
